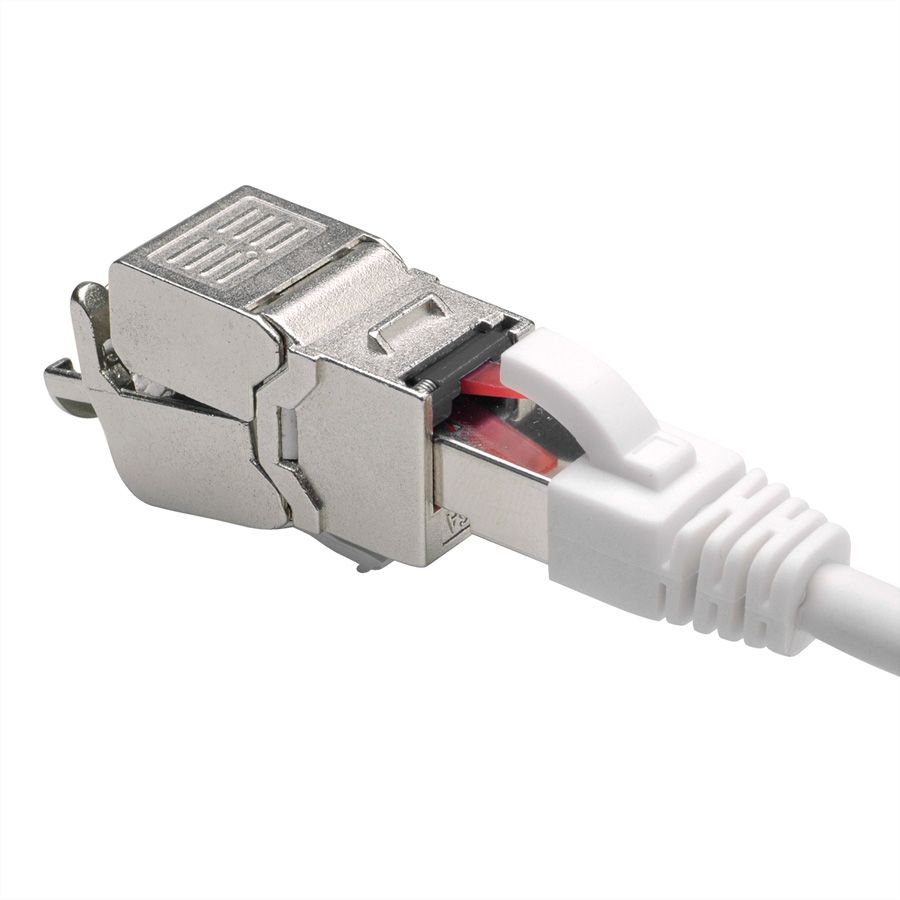

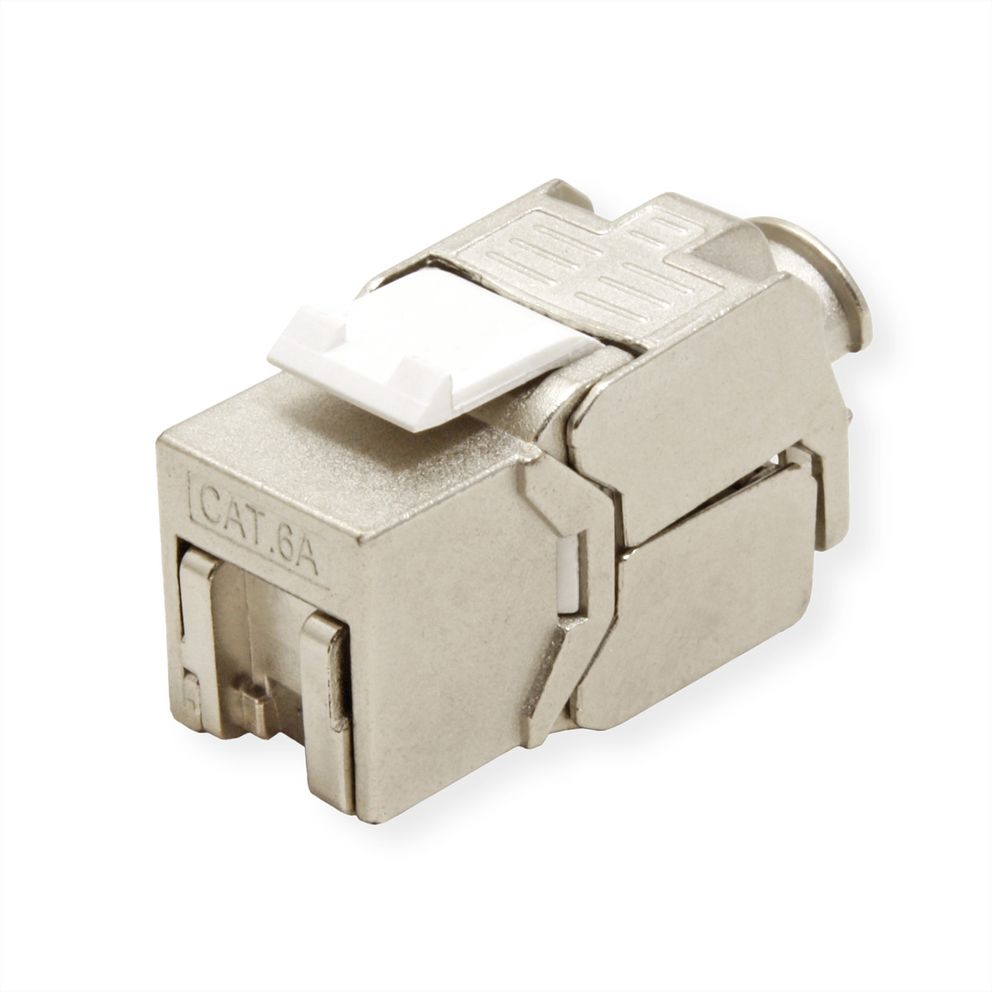

Embase FTP/STP cat 6 en métal 180 degré
2.800,00 CFA HT
Metal keystone jack FTP/STP cat6a 180 degree tool free silver color
200 en stock
Description
Description

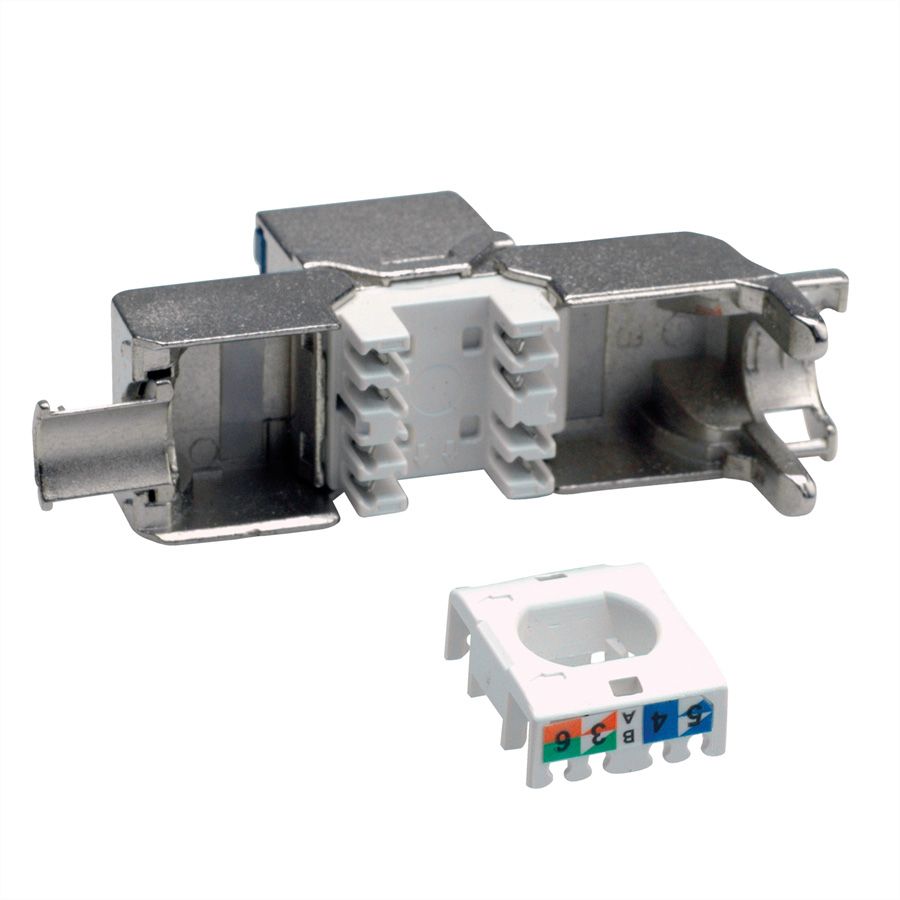

- Toolless mounting – without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed – the connection is ready for use
- Cat.6A Keystone Jack (Module) STP
- Fully shielded Housing(zinc alloy)
- 360 degree fully shielded
- Slim type
- With internal plastic shutter, black
- 180 degree cable entry
- Support PoE per IEEE 802.3af,PoE+ per IEEE 802.3at
- For cables with AWG 22-24 (0.45-0.65mm)
- For cables with OD: 5.0-8.5mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 37.9×15.8×22.2mm
- Colour: silver
PDF DATA SHEETS
Informations Techniques
| Manufacturer | VALUE |
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Assignment | EIA/TIA 568A & 568B |
| Connection direction | Straight |
